Tektronix Introduces New Keithley DMM and DAQ to Simplify and Enhance Test and Measurement

April 20 2018, 10:00
Tektronix introduced the Keithley DMM6510 6½-digit Bench/System Digital Multimeter and DAQ6510 Data Acquisition and Logging Multimeter System. These new instruments combine the simplicity of a "pinch and zoom" touchscreen interface for easy and faster test setup and at-a-glance monitoring and display with the power of 15 different measurement functions, wide measurement ranges, multichannel measurements, and class-leading accuracy and sensitivity.

Today's engineers continue to need performance, accuracy and flexibility from test instrumentation. But as time-to-market windows shrink they also need something more: simple, intuitive interfaces and fast operation that puts time back in their day. For its latest 6½-digit multimeter and data acquisition offerings, Keithley delivers a new level of simplicity providing a 5-in (12.7cm) touchscreen display with graphing, pinch and zoom, cursors, and statistics for greater insight into measurement trends and waveform characteristics ¾ saving time with setting up, monitoring, and executing measurements.

"The time is long-past where engineers should be forced to grapple with complex or cluttered user interfaces just because they are engineers and ultimately can figure it out," says Mike Flaherty, general manager, Keithley Product Line at Tektronix. "Instead, by delivering test instruments that simplify the complex, we're letting our customers focus on what's really important – the products they are trying to design or ship out the door – rather than trying to figure out how to use their measurement tools."

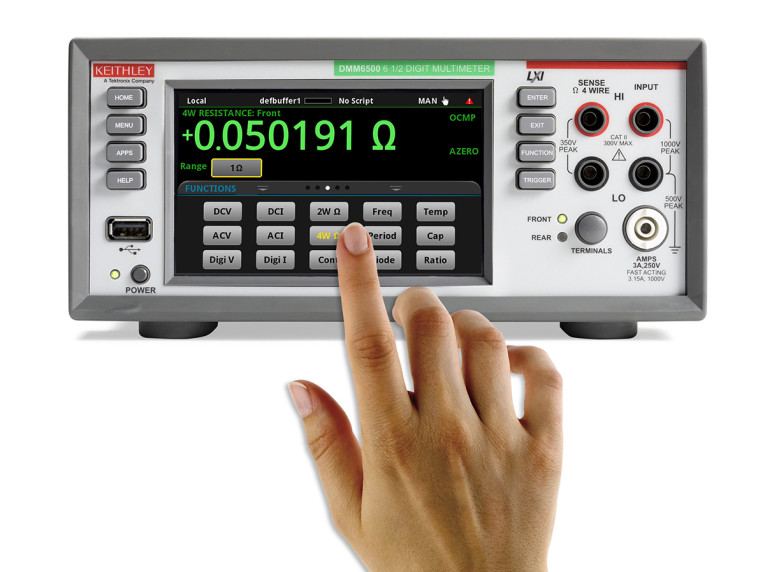

DMM6500
The DMM6500 6 ½-digit Bench/System Digital Multimeter supports 15 different types of measurements including capacitance, digitizing voltage or current waveforms, and temperature from thermocouples, thermistors, and resistance temperature detectors (RTDs). Waveforms and transients can be captured with the 1 Msample/s, 16-bit digitizer so that more measurements can be performed with one instrument and engineers can study more complex load current profiles from wireless devices such as IoT devices.

The DMM6500 has class-leading sensitivity to help make measurements on low power products. DC current sensitivity is 10pA and resistance sensitivity is 1µΩ. It has outstanding accuracy, rated at 0.0025% for one year and includes two-year specifications for longer calibration cycles and lower cost of ownership. With the growth in low-power devices, driven in part by the Internet of Things, engineers increasingly need to make lower level measurements than in the past.

The DMM6500's 5-in. (12.7cm) touchscreen display simplifies instrument setup with readily accessible swipe screens and minimized menu depth for fast, in-depth data analysis with "pinch and zoom" simplicity. Touchscreen cursors make it easy for designers to characterize measurements with statistical data such as peaks, average, minimum values, and standard deviation over portions of a waveform or over the whole waveform. Up to 7 million readings can be stored in the DMM, the most in the industry for this class of instrument.

If more than a single channel is needed, an optional 10-channel scan card or a 9-channel temperature card can be plugged into the rear of the instrument. The DMM6500's standard interfaces are LAN/LXI and USB-TMC. Optional user-installable interfaces with six programmable digital I/O lines include GPIB, RS-232, and TSP-LINK.

To enable users to easily upgrade hardware in legacy test systems with minimal-to-no changes in test codes, the DMM6500 has emulation modes for the Keithley model 2000 6½-digit DMM and the Keysight 34401A 6½ -digit DMM.

Unique to Keithley is test script (TSP) software that allows a DMM6500 to execute a test with minimal intervention from a PC. This reduces the number of command communications between PC and instrument to save test time. This internal intelligence allows a DMM6500 to perform custom operations and customize the display for specific needs such as operator instructions.

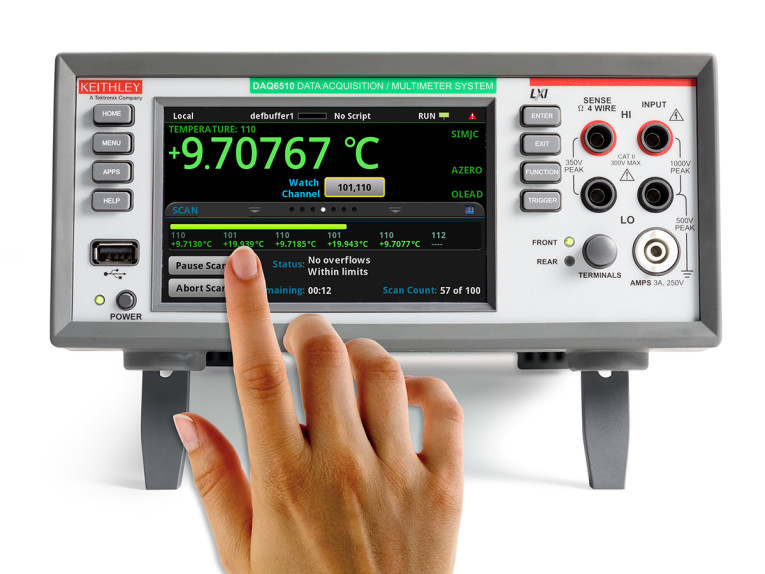

DAQ6510
The DAQ6510 Data Acquisition and Logging Multimeter System addresses the needs of environmental test, failure analysis, and quality control engineers who need to quickly set up tests on a statistically significant sample of products.

With its touchscreen display, the DAQ6510 simplifies setup, execution, monitoring, and analysis of multichannel-measurement systems, which can now be completely set up from a single display. With previous data logging instruments, engineers running long term tests have been unable to assess how well a test is proceeding. The DAQ6510 solves that problem with a status display which, at a glance, will tell whether any channel measurements are outside of limits or if measurements have over-ranged. The user can correct a problem and minimize lost test time rather than having to wait until the end of a test to discover any problems. Built-in plotting functions allow users to display up to 20 different plots from 20 channels in one graph and easily drill down using pinch and zoom controls and then conduct further analysis using cursors and statistical functions. All of this setup, execution, monitoring, and analysis can be done on the instrument without the need for a PC.

To test a statistically significant number of devices, the DAQ6510 can be combined with 7700-series Plug-In Switch Modules to test as many as 80 devices in one test system. With 12 plug-in switch modules including multiplexers, multiplexers with cold junction compensation for thermocouple temperature measurements, a matrix switch module, a control module, digital I/O module, and GHz switch modules, the DAQ6510 delivers the flexibility to build nearly any type of multichannel test system.

The DAQ6510 has the same interfaces and test script processing capability as the DMM6500 to give users the ability to select the optimum interface and to customize instrument measurements and displays. For those who prefer using a PC, setting up an automated test is greatly simplified with the new KickStart 2.0 coding-free instrument control software. Both a DMM control application and a data acquisition and logging application are available.

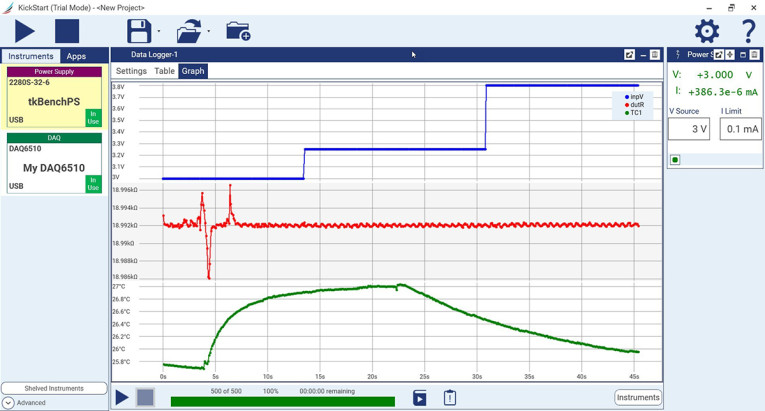

Tektronix also introduced Keithley KickStart 2.0 software that accelerates the path to results and enables quick test set-up and data visualization when using single or multiple instruments, such as the new DAQ6510.

Both instruments are available now globally. The DMM6500 is priced from $1,140 US MSRP while the DAQ6510 is priced from $1,750 US MSRP. The new Keithley KickStart 2.0 Instrument Control Software (KICKSTARTFL-BASE) is also available now globally as pre-release software with a 90-day free trial. Starting July 15, the price will be $249 with a standard 60-day free trial. For more information go to: https://www.tek.com/keithley-kickstart
