Microchip Extends eXtreme Low Power PIC32MM Microcontroller Family with USB Support

June 20 2017, 03:00
Microchip announced that new PIC32MM “GPM” MCUs are now available. The eXtreme Low Power (XLP) devices feature large memory in small packages, providing ample battery life for space-constrained applications. With the inclusion of USB support, I2S and several other connectivity options, Core Independent Peripherals and feature-rich development boards, the “GPM” MCUs are well suited for digital audio applications, and entertainment devices.

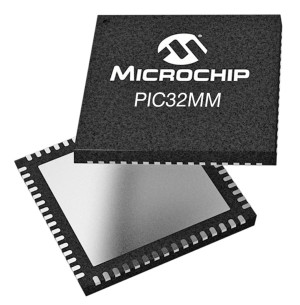

The new Microchip XLP PIC32MM “GPM” family of microcontrollers (MCUs) enables developers to minimize power consumption, board space and development time. The devices provide power-saving options, such as sleep modes with current consumption as low as 650 nA with Random Access Memory (RAM) retention, to greatly extend battery life in portable applications. These PIC MCUs are available with up to 256 KB of Error Correction Code (ECC) Flash and 32 KB of RAM, providing ample space for application code and communication stacks. The new devices are available in a variety of pin count options ranging from 28 to 64 pins in compact packages as small as 4x4 mm with 28 pins, 5x5 mm with 36 pins and 6x6 mm with 48 pins to optimize the overall design footprint.

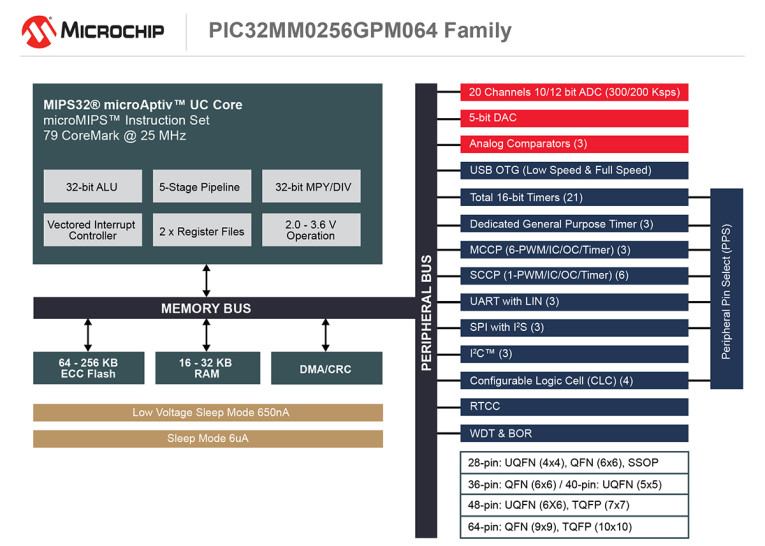

The PIC32MM “GPM” family integrates Core Independent Peripherals (CIPs), such as Direct Memory Access (DMA), Configurable Logic Cells (CLC) and a 12-bit Analog-to-Digital Converter (ADC), which allow the system to accomplish tasks in hardware while freeing up the central processing unit (CPU) to do other tasks or to go to sleep. Leveraging these hardware-based CIPs improves execution efficiency while maintaining system flexibility and lowering overall power consumption. These MCUs also include a crystal-less USB device/host/On-the-Go (OTG) and I2S functionality, crucial for USB audio applications and communication gateways. This family’s accurate on-chip USB oscillator eliminates the need for an external crystal or oscillator reducing overall system BOM cost and board real estate associated with USB applications.

The new family of devices is supported by the MPLAB Code Configurator (MCC) tool. MCC makes it easy to configure the USB stack, pin assignments and peripherals, significantly accelerating development time. These MCUs are also supported by Microchip’s MPLAB X Integrated Development Environment (IDE) ecosystem and MPLAB XC32 Compiler.

The new PIC32MM USB Curiosity Development Board is a low-cost development platform that comes fully integrated with a programmer/debugger. The board also features two MikroElektronika mikroBUS interfaces that enable support for more than 300 click boards, a USB Micro B connector and two X32 interfaces that enable access to the PIC32 Audio Codec Daughter Card.

Additionally, the PIC32MM Processor Plug-in Module, which plugs into the Explorer 16/32 Development Board ecosystem for easy evaluation, is available to kick-start development.


The PIC32MM “GPM” devices are available in 64 KB, 128 KB and 256 KB Flash variants with 28-, 36-, 48- and 64-pin packaging options. All device variants are currently available for orders and samples now, with the 28-pin UQFN available early next quarter.
www.microchip.com/pic32mm
