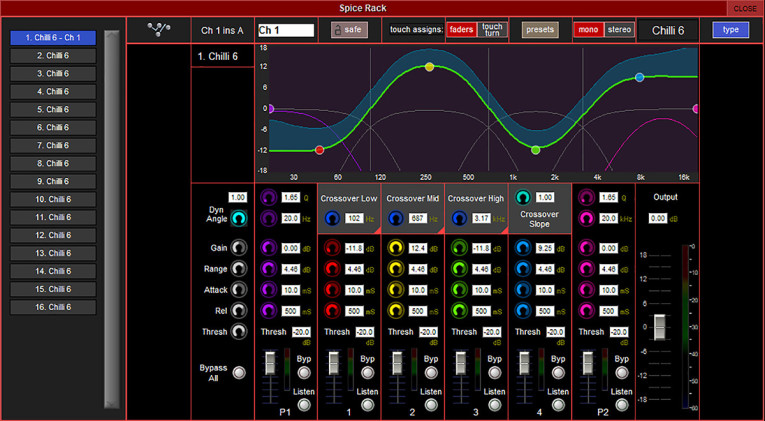

Following the manufacturer’s preview of Mustard earlier in 2019, DiGiCo now reveals the first “flavor” in its Spice Rack processor collection for Quantum 7: Chilli 6, a six-band, dynamic, multiband compressor/expander. Comprising a four-band, fourth-order frequency splitter with adjustable crossover and slope control plus two independent fourth-order parametric EQ bands, the new processing can be freely inserted on any channel type in any position. Controlled from the console’s Master screen and its work surface controls, Chilli 6’s two floating bands allow complete, detailed control of envelope shaping for definable frequency bands. The compressor/expander’s Range control restricts maximum gain change between -24dB and +18dB, and a Dyn Angle control determines level at which maximum gain change occurs.
And Mustard is DiGiCo's forthcoming set of algorithms and options for channel strip processing for the SD7 Quantum mixing engine that offers enhanced flexibility and choice when extra control and creative adjustment are needed within a mix. Making full use of the Quantum engine's seventh generation FPGA infrastructure, the Mustard channel can be used to deliver 64 channels of channel processing — in addition to the standard SD processing — to add pre-amp emulation, filters, EQ types, gate and a variety of compressor types to any existing channel strip. The Mustard Tube options include a fully controllable Pre-Amp Modeler, which gives users access to every aspect of their front-end drive, while the Mustard Dynamics include Vintage VCA and Optical compressor types that emulate some of the best-known devices available. All of this will enable users to add classic character and new textures to drums, bass, vocals, and guitars.
Working closely with design engineers at L-Acoustics, DiGiCo also announced a number of L-ISA control enhancements for its SD-Range. In particular, the latest software update includes new L-ISA controls for stereo channels — two rows of controls are now provided, which can be optionally linked, and a new display shows two objects and an additional pan spread control.
Furthermore, L-ISA “Groups” can now be selected and controlled from the console, and any console channel can be user defined to act as the L-ISA “Master” fader in the External Control Panel. The selected console channel can also be automatically selected in the L-ISA Controller, and a channel that is soloed on the console can also be automatically soloed on L-ISA.
Users of Audinate’s popular Dante protocol will be excited to see that DiGiCo is exhibiting the new DMI-Dante 64@96 card in NYC for its 4REA4, S-Series and select SD-Range consoles (SD12 and SD7 Quantum). Providing 64 input and 64 output channels at both 48kHz and 96kHz, the DMI (DiGiCo Multichannel Interface) card is equipped with Primary and Secondary (backup) Gigabit Ethernet ports for connection and uniquely offers a Sample Rate Conversion (SRC) feature that enables the desk to run at a different sample rate than the Dante network. Natively allowing DiGiCo products to communicate with other devices on a Dante network, the DMI-Dante 64@96 effectively doubles the previous DMI Dante card’s I/O channel count at the higher 96kHz resolution.

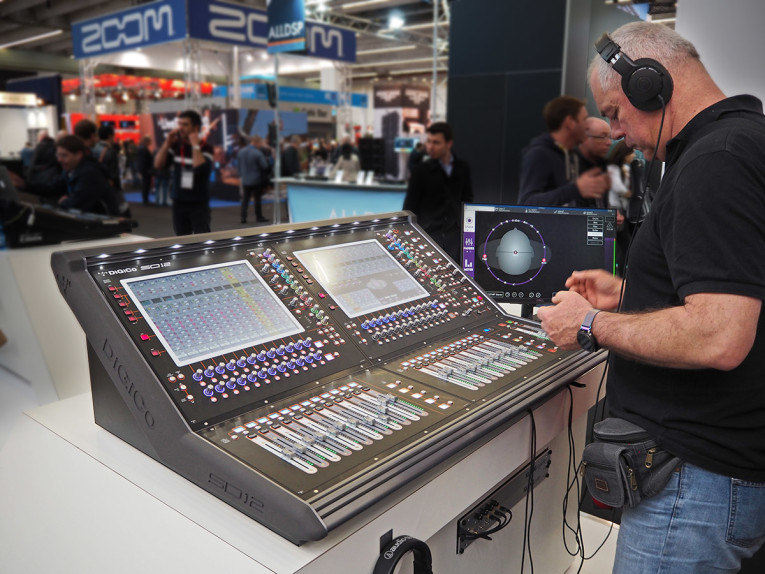

DiGiCo will also have a variety of other products on display on stand 629, including its flagship SD7 Quantum, SD12, and S31 mixing consoles, the 4REA4 installed audio solution, and late-breaking examples of the deepening integration of KLANG:technologies’ immersive IEM mixing system into the SD worksurface.
www.DiGiCo.biz
