Tidal Implements Album Loudness Normalization and Activates It by Default for Mobile Players

November 27 2017, 03:10

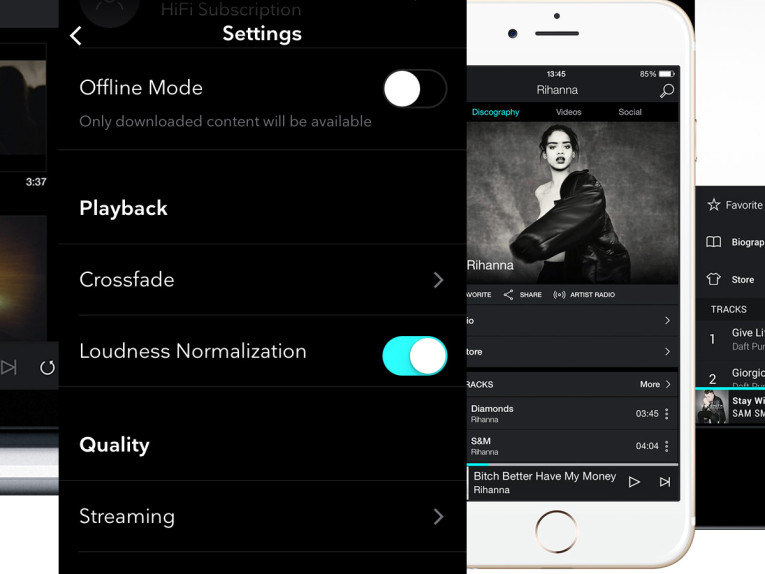

Always looking to differentiate its music streaming service with higher quality experiences, Tidal has now adopted the loudness recommendations of Eelco Grimm, HKU University of the Arts Utrecht (The Netherlands) and Grimm Audio. In Tidal’s recent update of their iOS and Android apps, loudness normalization is now turned ON by default. With this move, Tidal follows the trend towards automatic loudness normalization that was initiated by Spotify and Youtube.


Tidal was the first music streaming service to offer lossless streaming and the first to also offer Master Quality Authenticated (MQA) tracks and albums, allowing users of streaming services to access higher than CD-quality audio. Next on the company's list was dealing with loudness normalization in a way that would be compatible with the demands of its audience. For that purpose, Tidal turned to Eelco Grimm, and the HKU University of the Arts Utrecht, The Netherlands, where they have conducted a vast research, surveying the 4.2 million albums in the company's catalog.

Based on this research, a proposal was developed to use album normalization where the loudest track of each album is normalized to -14 LUFS and the other tracks are aligned to the relative level they have in the album. These levels will then also be used when tracks are played in a randomly shuffled playlist with other albums’ tracks. This proposal was tested against track normalization in a shuffled playlist of 24 songs with 38 subjects. It turned out that 80% of the subjects preferred album normalization, even though the tracks were selected for an extreme difference in loudness, of up to 10 LU.

As Eelco Grimm explains: “Tidal wanted to offer their users an optimal listening experience by adding loudness normalization, but was concerned to interfere with the artistic intention of the producers. So I analyzed the loudness of 4.2 million albums from Tidal’s database and found that even with recent releases quite large loudness differences exist between soft and loud tracks of the album. By normalizing all tracks to the same level these differences are removed and the listener does not have the intended experience. A so called ‘album normalization’ method, where all songs are adjusted with the same offset, solves this problem. The research question now was if these level differences between songs would still be appreciated when the tracks are mixed with songs from other albums in a playlist. The outcome of my subject test was that the majority of users preferred album normalization always, even when soft songs from one album are played next to loud songs from another album. The database analysis further suggested that on mobile devices the loudest track of the albums should be aligned to -14 LUFS."

"Tidal adopted album normalization at -14 LUFS and followed my recommendation to turn loudness normalization on by default. This is not only convenient for the listener, but it also helps to end the Loudness War since there is no advantage anymore in squashing the life out of a master. Such a track will just be attenuated more in the Music Streamer’s app and make less impact than a dynamically mastered track. I am very excited about this development. The majority of music consumers world wide now listens to loudness normalized music. I hope that the few remaining streaming companies that do not offer loudness normalization by default will follow soon.”

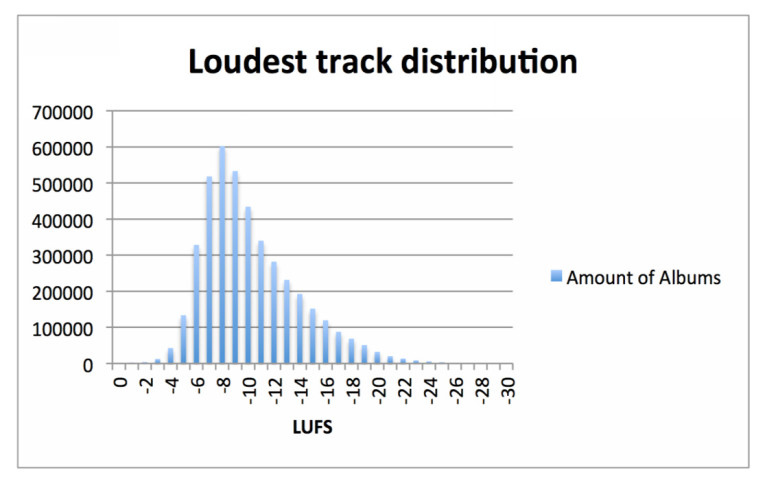

This graph shows the distribution of the loudest track of all albums on Tidal's database: 87% of all albums have a loudest track that is louder than -14 LUFS. Part of the remaining 13% was manually evaluated and most of these albums were either classical or jazz, or were made in the 80’s. Many of these are -15 or -16 LUFS, so would play just 1 or 2 dB low if a target of -14 LUFS was chosen.

On its document: "Recommendation for loudness normalization by Music Streaming Services," Eelco Grimm explains how the process was conducted. "In 2006 the ITU has introduced a standard for measuring loudness in broadcasts, BS17703. Since it is the only open standard for loudness measurements available and music producers demand that their songs be treated equally on all streaming services, we recommend to use BS1770 to measure loudness of music productions. The main issue is to select the type of loudness normalization: track normalization or album normalization. With track normalization all tracks are made equally loud. With album normalization, just the loudest tracks of an album are made equally loud and the other tracks keep the relative level they had on their album. If one listens to an album, album normalization makes most sense. But when streaming, people do not just listen to albums as a whole but also to randomly picked tracks in a shuffled playlists. So the question is: does album normalization work for a shuffled playlist too?

"The second question is: what should the target level be for mobile playback? The current generation of mobile devices such as smart phones have a limited headroom to comply with governmental hearing protection laws (4) in the EU. Because of this, AES TD10045 recommends to keep the loudness of programs above -20 LUFS in mobile devices."

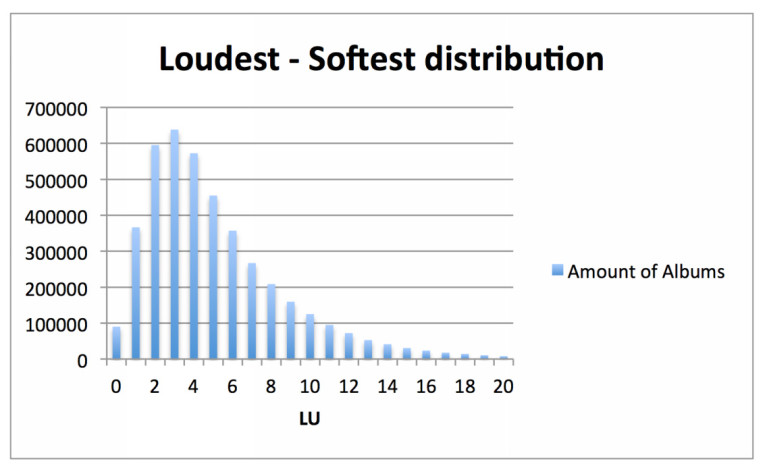

This graph shows the distribution of the difference between the loudest and softest track of all albums: In just 2% of all albums the softest track is of equal loudness as the loudest. If album normalization is used and the loudest track is aligned to -14 LUFS, the softest tracks of these albums would still be in the range of the AES TD1004 recommendation of -16 to -20 LUFS.

Based upon this, the following recommendations to Music Streaming Services are made:

1. Turn album normalization ON by default. With album normalization, the loudest tracks of all albums are adjusted to the same loudness during playback.

2. Use the industry standard ITU BS1770-4 measurement so that mastering engineers can predict the result of their work for all services at once.

3. In mobile devices, use a target level of -14 LUFS for the loudest track of an album.

4. In a living room setting, lower target levels such as -18 LUFS to -20 LUFS are preferred. The advantage is that albums of more dynamic genres such as classical and jazz will also become loudness normalized.

5. To avoid clipping, only attenuate tracks, never apply positive gain. If the loudest track of an album is softer than target level, all tracks of the album will play soft.

6. In the preferences, loudness normalization should optionally be turned off, for people who are concerned about automatic changes to the data, or for research purpose.

7. Although it seems attractive to add the third option of “track normalization” in the preference to satisfy all users, this can potentially confuse many people. It is not recommended.

8. Provide playback device manufacturers with the option to merge loudness normalization with playback gain, since this offers the highest possible loudness normalization and sound quality. In this case the loudness metadata information of a track is sent downstream all the way to the final gain stage of the system. The playback device manufacturer then merges the normalization data with the user set playback gain and applies just a single gain change. (Mark that if the system is floating point throughout, both gains can also be set independently). The advantage is that over a large range of playback levels, both very dynamic and compressed albums will be perfectly aligned in loudness, and there is no need to select a ‘target level’ anymore.

To see the research in more detail download Eelco Grimm’s full report here
