Allen & Heath Next Generation Digital Mixing Series Starts with dLive

June 10 2015, 03:00
Designed for the networked age, Allen & Heath has launched dLive, a next generation digital mixing system, providing ultra-flexible architecture, a powerful FPGA processing core, a comprehensive array of expansion, control and networking options, plus the intuitive Harmony user interface with gesture control.

It seams all major pro audio manufacturers of digital mixers are  entering a new advanced-stage with new mixing system architectures already fully adapted to the needs and working methods of the audio-over-IP networked age. Allen & Heath is the latest manufacturer to make the announcement of a new ambitious FPGA-based digital mixing platform with the dLive.

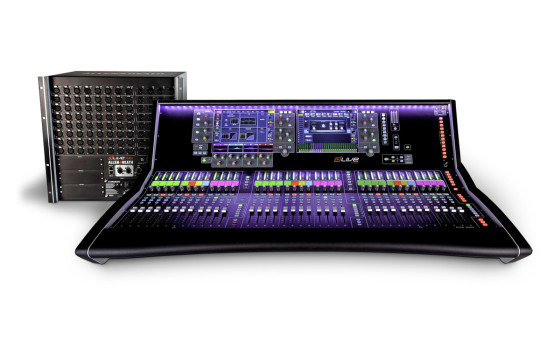

According to the British company, dLive is geared to applications from rigorous touring and festivals to installation in prestigious live venues, leveraging a distributed system design with separate MixRack and Surface. The dLive processing brain is housed in a separate MixRack, available in three sizes – the DM32, the DM48, and the DM64 – and there are three accompanying control surfaces.

All dLive MixRacks and Surfaces are mix ‘n match compatible, with common configuration, setup and show files. The MixRacks also contain the same processing engine, pioneered by the Allen & Heath R&D team using next generation FPGA technology.

The 96k/96bit XCVI Core provides capacity for 128 inputs with full processing and 16 dedicated stereo FX returns, offering 160 inputs to mix, plus a fully configurable 64 mix bus architecture, with full processing on all 64 mix channels. dLive incorporates the DEEP processing portfolio of embedded plugins, including Graphic EQs, Compressors, Multiband Compressors and Dynamic EQs, alongside its 16 slot FX racks, featuring Allen & Heath’s acclaimed range of FX emulations.

“Focusing on feedback from our customer base and key engineers, we have developed a new Allen & Heath technology base for live mixing. The XCVI Core is designed from the ground up to execute our DEEP Processing algorithms from within the FPGA channel processor core. This unique architecture allows users to select various embedded processing models on every input and mix channel on the fly, without burning valuable FX slots or adding latency,” says Allen & Heath’s R&D Director, Dr. Rob Clark.

Remote IO expansion is provided at both the MixRack and Surface through dual-redundant cat5 DX ports. This enables connection of up to three modular DX32 expansion units. Further inter-system and network connectivity is available through five resident 128 channel I/O ports for a range of audio networking cards,  including Dante, Waves SG, ACE, and MADI, with a fibre optic option also under development.

The dLive Surfaces come in a choice of three sizes – the S3000, the S5000, and the S7000. The Surface layout is fully customizable, every input or mix can be assigned to any bank and layer, named and color coded, and the engineer has 26 assignable SoftKeys at their disposal. Key to the Surface design is the new Harmony UI which integrates screen and wrap-around controls with a single or twin 12” capacitive touchscreen, gesture control, configurable widget areas for Scenes, meters and FX.

There is also advanced illumination control for optimal visibility in daylight or low light conditions, including backlit keys, RGB colored encoders, and an integrated LED light strip. Alternative mixing control is provided via MixPad and OneMix apps, Editor on/offline software, TCP/IP control for third party integration, and network-enabled IP fader and rotary remote controllers.

Finally, dLive has a new pro touring grade chassis, optimized for weight and rigidity. All units have dual power supply slots for redundancy, with PSUs hot swappable between Surfaces, MixRacks and Expanders. Dual redundancy is also built into every audio connection throughout the system.

“It really is the ultimate mixing system, with all the processing tools and power that the most demanding engineers would expect, and the flexibility and networkability to cater for any application. This is coupled with an extremely intuitive user interface and what we believe is the fastest workflow in the industry,” says Nicola Beretta, senior product manager. “dLive is equally at home in fixed installations, such as a house of worship or theatre, as it is at festivals and out touring.”

Prices range from $22,500 for a small dLive venue solution to approximately $35,000 for a large touring system. Click here for a video introduction of the system.

dlive.allen-heath.com
www.allen-heath.com
