For HBS, which has been producing such events since 2002, preparations have long been underway — the equipment and teams required for Brazil have been on-site since the beginning of April, carrying out intensive groundwork in order to ensure smooth broadcasts from the twelve stadia.

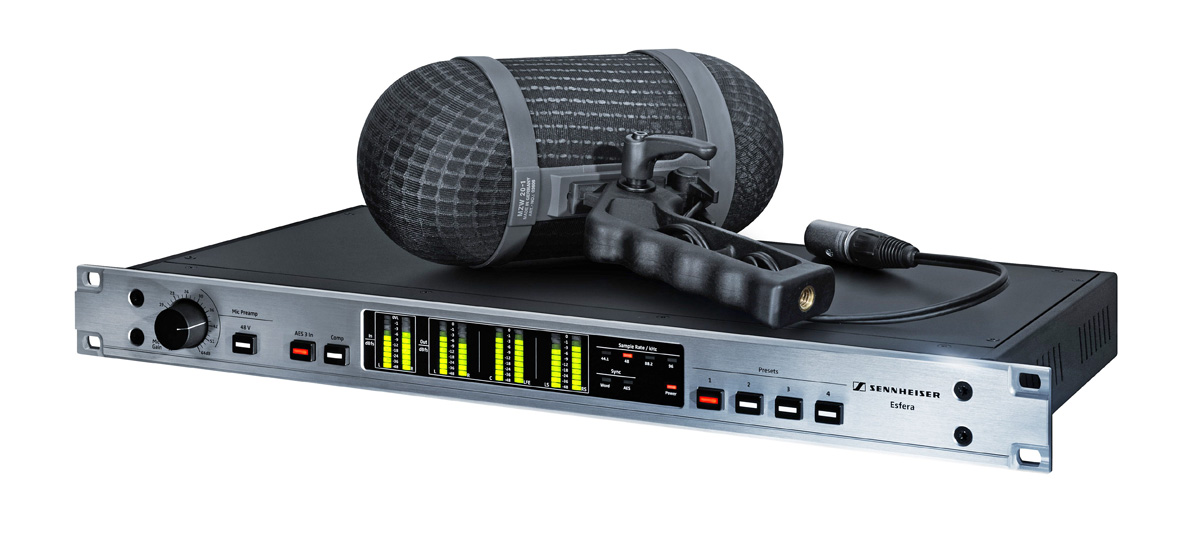

In Brazil HBS will, for the first time, use Sennheiser’s new Esfera surround microphone system, which produces complete 5.1 surround sound from the signal of a compact stereo microphone. “For us, high-quality images and high-quality sound go hand in hand,” comments a spokesperson from HBS. “And with Esfera we can create 5.1 sound with ease – even in post-production. Due to their compact construction and the small amount of cabling required, Esfera microphones will be used in a number of areas in the stadia, e.g. in the players’ tunnel, outside to capture the atmosphere and in the Camera 1 position as a fail-safe for 5.1 surround sound.” A total of 36 Esfera microphones (SPM 8000) will record the sound in the twelve stadia; in the International Broadcast Centre, two Esfera processing units (SPB 8000) will then be used to produce 5.1 sound from the stereo signals.

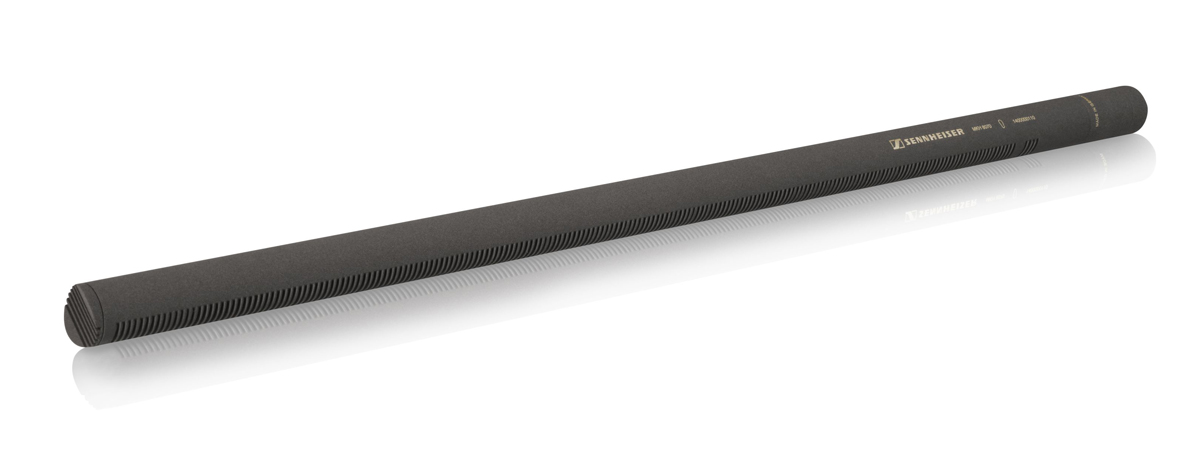

The sound of volleys and goal kicks will be captured using around 300 shotgun microphones – including MKH 8070 long gun microphones for the very precise recording of distant sound sources, MKH 8060 short gun microphones and MKH 418-S stereo shotgun microphones. MD 46 reporter microphones will also be in action at the edge of the pitch.
A total of 24 plug-on transmitters from the 2000 series will be used for wireless boom microphones and for spidercam-mounted MKH 8060s. Every camera team will also have a wireless reporting set (EK 2000 camera receiver and SK 2000 bodypack transmitter with MKE 1 clip-on microphone) and a wired MD 46 reporter microphone at its disposal. The audio signal will be monitored via HD 25 headphones.
Team and match news
Of course, background reports about the teams and other stories from Brazil are a vital element too. To this end, HBS has also put together additional wireless packages for reporters: 40 wireless reporting sets with technology from the 2000 series will provide crystal clear sound transmission (EK 2000 camera receivers and SKM 2000 handheld transmitters with MMD 935 microphone heads), while 40 talk-back links will enable reporters to maintain contact with editorial staff (SK 2000 transmitters and EK 1039 bodypack receivers with HD 25 headphones).
Sennheiser equipment in Brazil:
Microphones in the twelve stadia / camera team equipment
36 Esfera surround microphone systems (36 SPM 8000 stereo microphones; two SPB 8000 processing units)
240 MKH 8060 short gun microphones
48 MKH 8070 long gun microphones
96 MKH 418-S stereo shotgun microphones
47 MKH 416 short gun microphones
120 MD 46 reporter microphones
24 wireless channels of the 2000 Series for boom and spider cam microphones
47 wireless microphone systems for camera use (EK 2000 camera receivers, SK 2000 bodypack transmitters with MKE 1 clip-on microphones)
47 MD 46 reporter microphones
47 HD 25 monitoring headphones
Additional equipment for team news reporting
40 camera systems (EK 2000 camera receivers, SKM 2000 handheld transmitters with MMD 935 microphone heads)
40 talk-back links (SK 2000 bodypack transmitters, EK 1039 bodypack receivers, HD 25 headphones)
